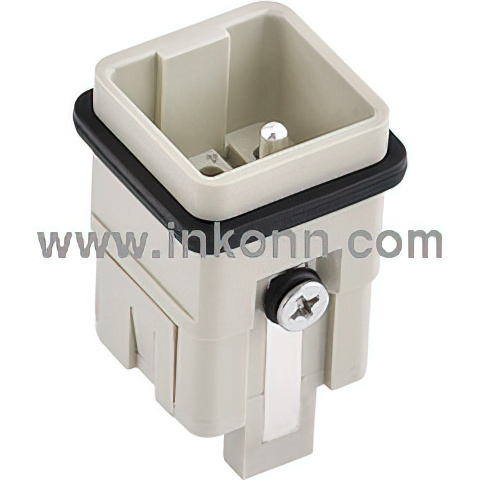

Inserts - IQ-005/0-CM - 10 36 005 2100 - InKonn
InKonn SARE® contact insert, Series IQ, size A03, 5+PE, male. Connection type: crimp termination. Rated current 16A, rated voltage 230/400V. Wire size 0.14-2.5mm². Contact resistance <1mΩ. Insert material: polycarbonate (PC) (UL 94 V-0). Temperature range -40…+125°C. ≥500 mating cycles. CE compliant, RoHS certified. Compatible with all SARE® housings of the corresponding size.
Specifications
| Strip length | Please refer to crimp contact data |
| Tightening torque | See table EN 60947-1 |
| Size | A03 |
| Rated voltage IEC | 230/400V |
| Rated impulse voltage | 4kV |
| Rated current IEC | 16A |
| Flammability class UL 94 | V-0 |
| CE marking | Yes |
| China RoHS | Compliant |
| Contact resistance | <1mΩ |
| Insert colour | Pebble grey (RAL 7032) |
| Gender | Male |
| Insulation resistance | >1010Ω |
| Insulating material group | IIIa |
| Number of contacts | 5+PE |
| Contact series | CE |
| Conductor cross-section | 0.14-2.5mm² |
| Crimp contact plating | Silver-plated |
| RoHS | Compliant |
| Series | IQ |
| Mating cycles | ≥500 |
| Max. temperature | +125°C |
| Min. temperature | -40°C |
| Pollution degree | 3 |
| Crimp contact material | Copper alloy |
| Insert material | Polycarbonate (PC) |
| Overvoltage category | III |
