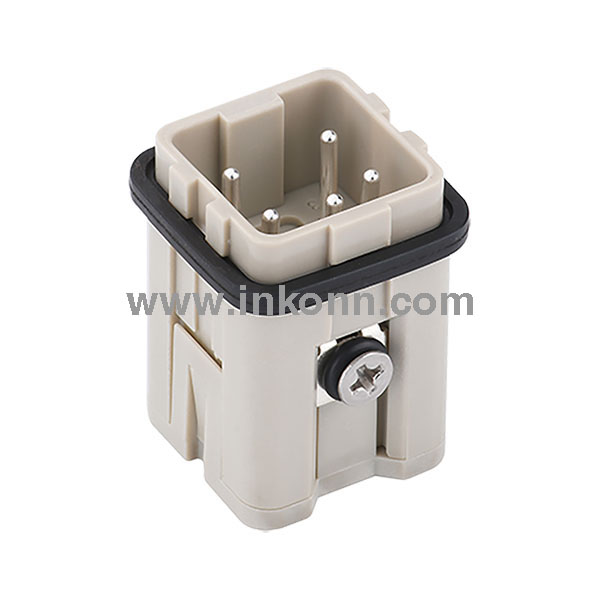

Inserts - IA-004-SM - 10 30 004 3100 - InKonn

• Strip length
  • 4.5mm
• Tightening torque
  • See table EN 60947-1
• Size
  • A03
• Rated voltage IEC
  • 230/400V
• Rated impulse voltage
  • 4kV
• Rated current IEC
  • 10A
• Flammability class UL 94
  • V-0
• CE marking
  • Yes
• China RoHS
  • Compliant
• Contact resistance
  • <3mΩ
• Insert colour
  • Pebble grey (RAL 7032)
• Gender
  • Male
• Insulation resistance
  • >1010Ω
• Insulating material group
  • IIIa
• Number of contacts
  • 4+PE
• Conductor cross-section
  • 0.75-2.5mm² (2.5mm² without ferrule)
• Conductor cross-section AWG
  • AWG 18-AWG 14
• Crimp contact plating
  • Silver-plated
• Option
  • NBR
• RoHS
  • Compliant
• Series
  • IA03
• Mating cycles
  • ≥500
• Max. temperature
  • +125°C
• Min. temperature
  • -40°C
• Pollution degree
  • 3
• Crimp contact material
  • Copper alloy
• Insert material
  • Polycarbonate (PC)
• Overvoltage category
  • III
