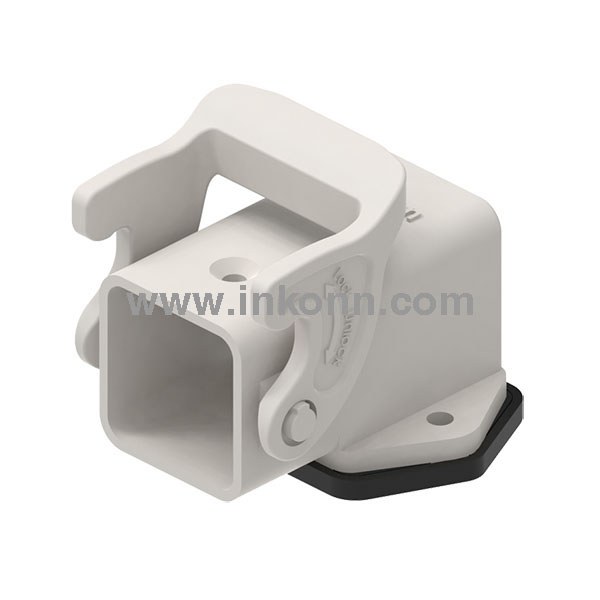

Housings - HPA03-ABM-SL - 10 07 003 3510 - InKonn
InKonn SARE® surface-mount housing, plastic version, size A03. Version: straight. Protection rating IP65 / NEMA 4X, 12 – reliable protection against dust and water. Locking: single lever. Housing material: polycarbonate, colour grey (RAL 7032). Temperature range -40…+125°C. CE compliant, RoHS certified. Compatible with all SARE® inserts of the corresponding size.
Specifications
| Chargers | |
|---|---|
| IP protection class | IP65 |
| Others | |
|---|---|
| Size | A03 |
| Locking lever type | Longitudinal lever |
| CE marking | Yes |
| China RoHS | Compliant |
| Lever colour | Pebble grey (RAL 7032) |
| Housing colour | Pebble grey (RAL 7032) |
| Housing option | Straight |
| Housing series | Plastic |
| NEMA protection class | 4X, 12 |
| RoHS | Compliant |
| Max. temperature | +125°C |
| Min. temperature | -40°C |
| Lever material | Polycarbonate |
| Housing material | Polycarbonate |
