Inserts - IE-010-CM - 10 32 010 2100 - InKonn

Inserts - IE-010-CM - 10 32 010 2100 - InKonn

https://www.industrial-connector.eu/web/image/product.template/57324/image_1920?unique=0a949d3

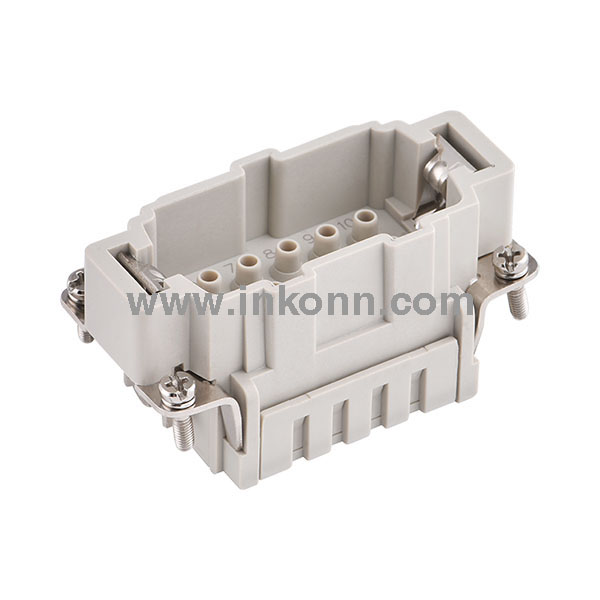

InKonn SARE® contact insert, Series IE, size B10, 10+PE, male. Connection type: crimp termination. Rated current 16A, rated voltage 500V. Wire size 0.14-4mm² (AWG 26-AWG 12). Contact resistance <1mΩ. Insert material: polycarbonate (PC) (UL 94 V-0). Temperature range -40…+125°C. ≥500 mating cycles. CE compliant, RoHS certified. Compatible with all SARE® housings of the corresponding size.

5.87 € 5.87 EUR 5.87 €

5.87 €

Not Available For Sale

  • Strip length
  • Tightening torque
  • Size
  • Rated voltage IEC
  • Rated impulse voltage
  • Rated current IEC
  • Flammability class UL 94
  • CE marking
  • China RoHS
  • Contact resistance
  • Insert colour
  • Gender
  • Insulation resistance
  • Insulating material group
  • Number of contacts
  • Contact series
  • Conductor cross-section
  • Conductor cross-section AWG
  • Crimp contact plating
  • RoHS
  • Series
  • Mating cycles
  • Max. temperature
  • Min. temperature
  • Pollution degree
  • Crimp contact material
  • Insert material
  • Overvoltage category

This combination does not exist.

InKonn
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Specifications

Strip length Please refer to crimp contact data
Tightening torque See table EN 60947-1
Size B10
Rated voltage IEC 500V
Rated impulse voltage 6kV
Rated current IEC 16A
Flammability class UL 94 V-0
CE marking Yes
China RoHS Compliant
Contact resistance <1mΩ
Insert colour Pebble grey (RAL 7032)
Gender Male
Insulation resistance >1010Ω
Insulating material group IIIa
Number of contacts 10+PE
Contact series CE
Conductor cross-section 0.14-4mm²
Conductor cross-section AWG AWG 26-AWG 12
Crimp contact plating Silver-plated
RoHS Compliant
Series IE
Mating cycles ≥500
Max. temperature +125°C
Min. temperature -40°C
Pollution degree 3
Crimp contact material Copper alloy
Insert material Polycarbonate (PC)
Overvoltage category III
