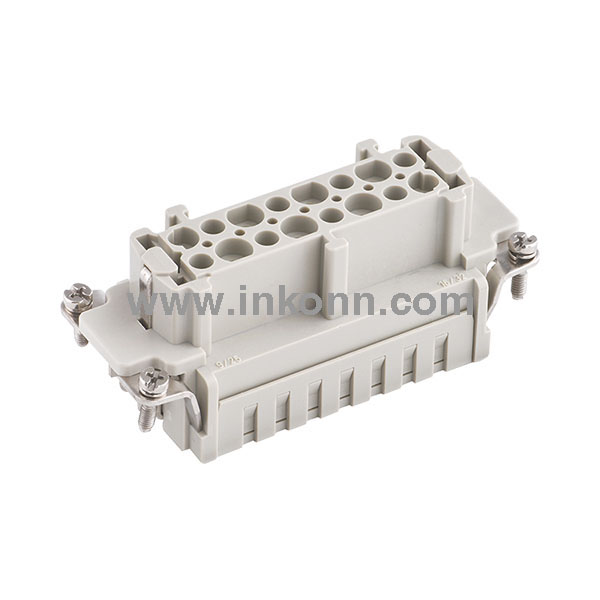

Inserts - IE-016-SF - 10 32 016 3200 - InKonn

• Strip length
  • 7-9mm
• Tightening torque
  • See table EN 60947-1
• Size
  • B16
• Rated voltage IEC
  • 500V
• Rated impulse voltage
  • 6kV
• Rated current IEC
  • 16A
• Flammability class UL 94
  • V-0
• CE marking
  • Yes
• China RoHS
  • Compliant
• Contact resistance
  • <1mΩ
• Insert colour
  • Pebble grey (RAL 7032)
• Gender
  • Female
• Insulation resistance
  • >1010Ω
• Insulating material group
  • IIIa
• Number of contacts
  • 16+PE
• Conductor cross-section
  • 0.14-2.5mm² (2.5mm² without ferrule)
• Conductor cross-section AWG
  • AWG 26-AWG 14
• Crimp contact plating
  • Silver-plated
• RoHS
  • Compliant
• Series
  • IE
• Mating cycles
  • ≥500
• Max. temperature
  • +125°C
• Min. temperature
  • -40°C
• Pollution degree
  • 3
• Crimp contact material
  • Copper alloy
• Insert material
  • Polycarbonate (PC)
• Overvoltage category
  • III
