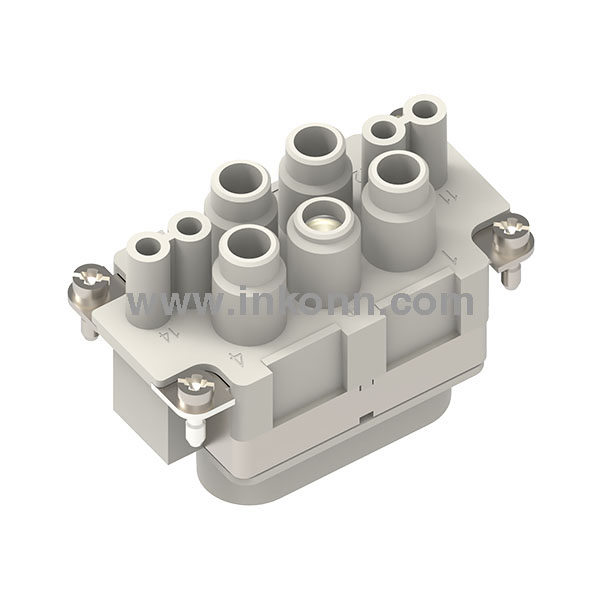

Inserts - IK-004.2/4-F - 10 37 008 1221 - InKonn

• Strip length
  • 11-12mm
• Tightening torque
  • Depending on wire size
• Size
  • B10
• Rated voltage IEC
  • 690V
• Rated impulse voltage
  • 8kV
• Rated current IEC
  • 63A
• Flammability class UL 94
  • V-0
• CE marking
  • Yes
• China RoHS
  • Compliant
• Contact resistance
  • <0.5mΩ
• Insert colour
  • Pebble grey (RAL 7032)
• Gender
  • Female
• Insulation resistance
  • >1010Ω
• Insulating material group
  • IIIa
• Number of contacts
  • 4/4+PE
• Conductor cross-section
  • 10-22mm²
• Crimp contact plating
  • Silver-plated
• RoHS
  • Compliant
• Series
  • IK
• Mating cycles
  • ≥500
• Max. temperature
  • +125°C
• Min. temperature
  • -40°C
• Pollution degree
  • 3
• Crimp contact material
  • Copper alloy
• Insert material
  • Polycarbonate (PC)
• Overvoltage category
  • III
