Inserts - IK-004/8-F - 10 37 012 1200 - InKonn

Inserts - IK-004/8-F - 10 37 012 1200 - InKonn

https://www.industrial-connector.eu/web/image/product.template/57856/image_1920?unique=2645903

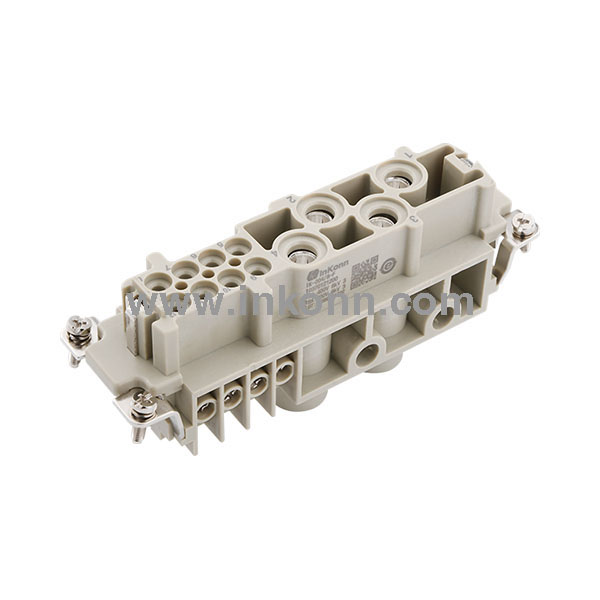

InKonn SARE® contact insert, Series IK, size B24, 4/8+PE, female. Connection type: screw termination. Rated current 16A, rated voltage 400V. Wire size 0.5-2.5mm². Contact resistance <0.3mΩ. Insert material: polycarbonate (PC) (UL 94 V-0). Temperature range -40…+125°C. ≥500 mating cycles. CE compliant, RoHS certified. Compatible with all SARE® housings of the corresponding size.

54.12 € 54.12 EUR 54.12 €

54.12 €

Not Available For Sale

  • Strip length
  • Tightening torque
  • Size
  • Rated voltage IEC
  • Rated impulse voltage
  • Rated current IEC
  • Flammability class UL 94
  • CE marking
  • China RoHS
  • Contact resistance
  • Insert colour
  • Gender
  • Insulation resistance
  • Insulating material group
  • Clamping screw contacts
  • Number of contacts
  • Conductor cross-section
  • Crimp contact plating
  • RoHS
  • Series
  • Mating cycles
  • Max. temperature
  • Min. temperature
  • Pollution degree
  • Crimp contact material
  • Insert material
  • Overvoltage category

This combination does not exist.

InKonn
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Specifications

Strip length 14mm
Tightening torque Depending on wire size
Size B24
Rated voltage IEC 400V
Rated impulse voltage 6kV
Rated current IEC 80A
Flammability class UL 94 V-0
CE marking Yes
China RoHS Compliant
Contact resistance <0.3mΩ
Insert colour Pebble grey (RAL 7032)
Gender Female
Insulation resistance >1010Ω
Insulating material group IIIa
Clamping screw contacts M5
Number of contacts 4/8+PE
Conductor cross-section 1.5-16mm²
Crimp contact plating Silver-plated
RoHS Compliant
Series IK
Mating cycles ≥500
Max. temperature +125°C
Min. temperature -40°C
Pollution degree 3
Crimp contact material Copper alloy
Insert material Polycarbonate (PC)
Overvoltage category III
