Inserts - FMB10-L - 10 38 010 8200 - InKonn

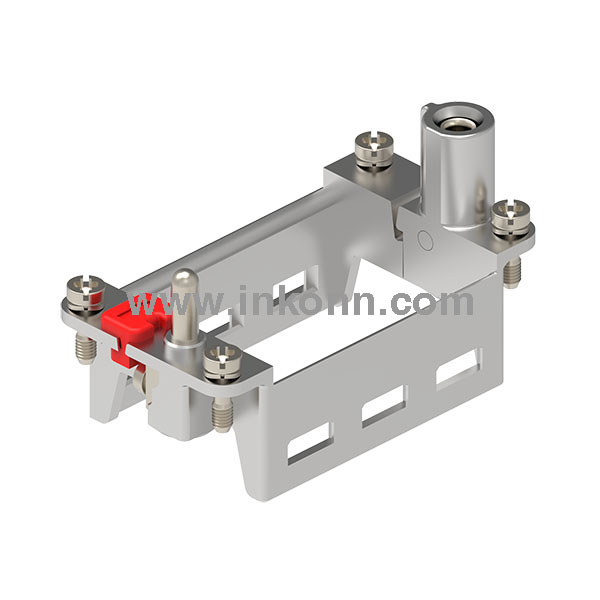

InKonn SARE® hinged frame, size B10. Configuration: für 3 Module, a...c. Material: zinc die-cast (UL 94 V-0). PE cross-section power: 4...10mm², signal: 1...2.5mm². Temperature range -40…+125°C. ≥500 mating cycles. CE compliant, RoHS certified. For use in modular SARE® heavy-duty connectors.
Specifications
| Size | B10 |
| Flammability class UL 94 | V-0 |
| CE marking | Yes |
| China RoHS | Compliant |
| Insulating material group | IIIa |
| Conductor cross-section PE power | 4...10mm² |
| Conductor cross-section PE signal | 1...2.5mm² |
| Option | For 3 modules, a...c |
| RoHS | Compliant |
| Series | IM |
| Mating cycles | ≥500 |
| Max. temperature | +125°C |
| Min. temperature | -40°C |
| Frame material | Die-cast zinc |
