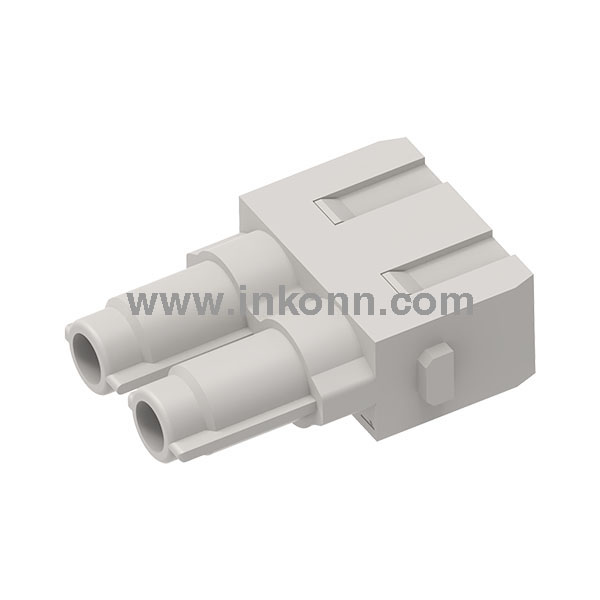

Inserts - IM70-002.1-F - 10 38 002 1220 - InKonn

Inserts - IM70-002.1-F - 10 38 002 1220 - InKonn

https://www.industrial-connector.eu/web/image/product.template/57888/image_1920?unique=165b85c
InKonn SARE® contact insert, Series IM, size M1, 2, female. Connection type: axial screw termination. Modular insert with 1 slot. Rated current 70A, rated voltage 1000V. Wire size 6-16mm². Contact resistance <0.5mΩ. Insert material: polycarbonate (PC) (UL 94 V-0). Temperature range -40…+125°C. ≥500 mating cycles. CE compliant, RoHS certified. Compatible with all SARE® housings of the corresponding size.

18.38 € 18.38 EUR 18.38 €

18.38 €

Not Available For Sale

  • Strip length
  • Tightening torque
  • Size
  • Rated voltage IEC
  • Rated impulse voltage
  • Rated current IEC
  • Flammability class UL 94
  • CE marking
  • China RoHS
  • Contact resistance
  • Insert colour
  • Gender
  • Insulation resistance
  • Insulating material group
  • Number of contacts
  • Conductor cross-section
  • Modular slots
  • Crimp contact plating
  • RoHS
  • Series
  • Mating cycles
  • Max. temperature
  • Min. temperature
  • Pollution degree
  • Crimp contact material
  • Insert material
  • Overvoltage category

This combination does not exist.

InKonn
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Specifications

Strip length 11-12mm
Tightening torque Depending on wire size
Size M1
Rated voltage IEC 1000V
Rated impulse voltage 8kV
Rated current IEC 70A
Flammability class UL 94 V-0
CE marking Yes
China RoHS Compliant
Contact resistance <0.5mΩ
Insert colour Pebble grey (RAL 7032)
Gender Female
Insulation resistance >1010Ω
Insulating material group IIIa
Number of contacts 2
Conductor cross-section 6-16mm²
Modular slots 1
Crimp contact plating Silver-plated
RoHS Compliant
Series IM
Mating cycles ≥500
Max. temperature +125°C
Min. temperature -40°C
Pollution degree 3
Crimp contact material Copper alloy
Insert material Polycarbonate (PC)
Overvoltage category III
