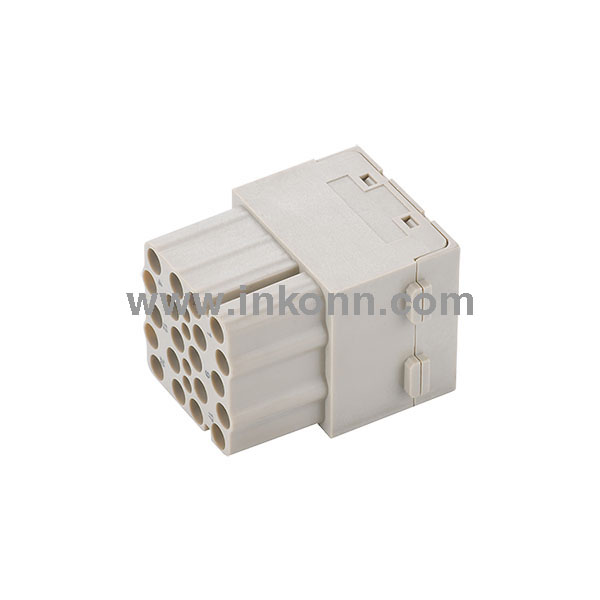

Inserts - I2MEEE-020-CF - 10 38 020 2200 - InKonn

Inserts - I2MEEE-020-CF - 10 38 020 2200 - InKonn

https://www.industrial-connector.eu/web/image/product.template/57914/image_1920?unique=eb23021
InKonn SARE® contact insert, Series IM, size M2, 20, female. Connection type: crimp termination. Modular insert with 2 slots. Rated current 16A, rated voltage 500V. Wire size 0.14-4mm². Contact resistance <1mΩ. Insert material: polycarbonate (PC) (UL 94 V-0). Temperature range -40…+125°C. ≥500 mating cycles. CE compliant, RoHS certified. Compatible with all SARE® housings of the corresponding size.

8.71 € 8.71 EUR 8.71 €

8.71 €

Not Available For Sale

  • Gender
  • Size
  • Number of contacts
  • Rated current IEC
  • Rated voltage IEC
  • Rated impulse voltage
  • Strip length
  • Contact series
  • Modular slots
  • Flammability class UL 94
  • CE marking
  • China RoHS
  • Contact resistance
  • Insert colour
  • Insulation resistance
  • Insulating material group
  • Conductor cross-section
  • Crimp contact plating
  • RoHS
  • Series
  • Mating cycles
  • Max. temperature
  • Min. temperature
  • Pollution degree
  • Crimp contact material
  • Insert material
  • Overvoltage category

This combination does not exist.

InKonn
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Specifications

Gender Female
Size M2
Number of contacts 20
Rated current IEC 16A
Rated voltage IEC 500V
Rated impulse voltage 6kV
Strip length Please refer to crimp contact data
Contact series CE
Modular slots 2
Flammability class UL 94 V-0
CE marking Yes
China RoHS Compliant
Contact resistance <1mΩ
Insert colour Pebble grey (RAL 7032)
Insulation resistance >1010Ω
Insulating material group IIIa
Conductor cross-section 0.14-4mm²
Crimp contact plating Silver-plated
RoHS Compliant
Series IM
Mating cycles ≥500
Max. temperature +125°C
Min. temperature -40°C
Pollution degree 3
Crimp contact material Copper alloy
Insert material Polycarbonate (PC)
Overvoltage category III
