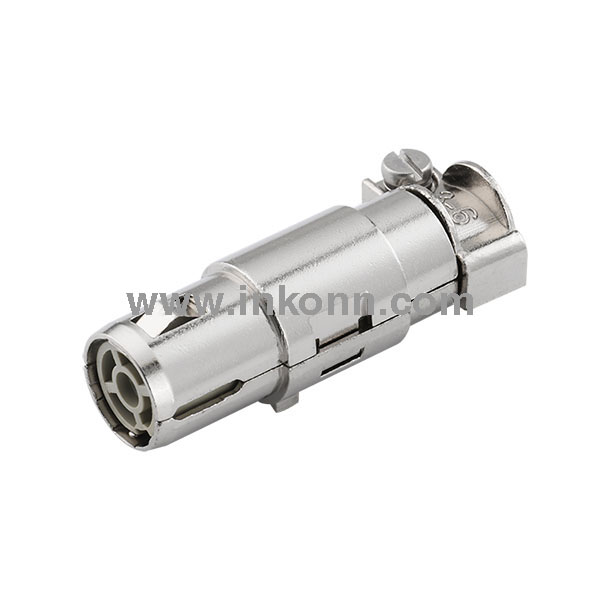

Inserts - QD-004-CF - 10 38 004 0200 - InKonn
InKonn SARE® contact insert, Series IM, 4, female. Connection type: crimp termination. Rated current 10A, rated voltage 50V. Wire size 0.14-2.5mm². Contact resistance <3mΩ. Temperature range -40…+125°C. ≥500 mating cycles. CE compliant, RoHS certified. Compatible with all SARE® housings of the corresponding size.
Specifications
| Strip length | Please refer to crimp contact data |
| Rated voltage IEC | 50V |
| Rated impulse voltage | 0.8kV |
| Rated current IEC | 10A |
| CE marking | Yes |
| China RoHS | Compliant |
| Contact resistance | <3mΩ |
| Gender | Female |
| Insulating material group | IIIa |
| Number of contacts | 4 |
| Contact series | CD |
| Conductor cross-section | 0.14-2.5mm² |
| Crimp contact plating | Silver-plated |
| RoHS | Compliant |
| Series | IM |
| Mating cycles | ≥500 |
| Max. temperature | +125°C |
| Min. temperature | -40°C |
| Pollution degree | 3 |
| Crimp contact material | Copper alloy |
| Shielding material | Die-cast zinc, nickel-plated |
| Overvoltage category | III |
