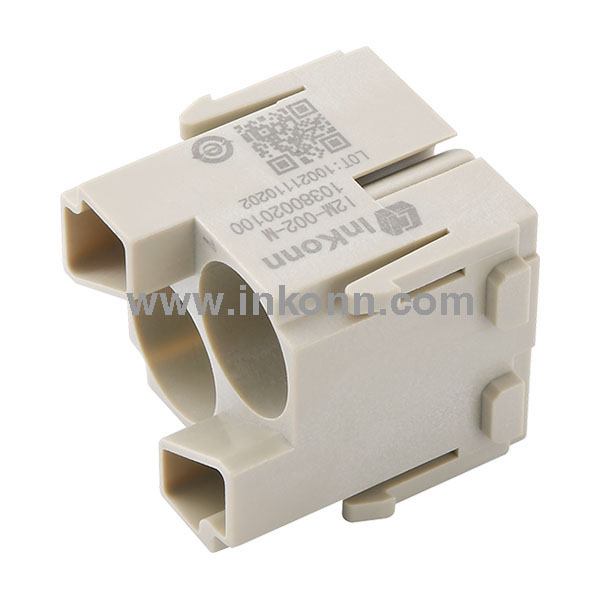

Inserts - I2M-002-M - 10 38 002 0100 - InKonn
InKonn SARE® contact insert, Series IM, size M2. Modular insert with 2 slots. Insert material: polycarbonate (PC) (UL 94 V-0). Temperature range -40…+125°C. ≥500 mating cycles. CE compliant, RoHS certified. Compatible with all SARE® housings of the corresponding size.
Specifications
| Size | M2 |
| Flammability class UL 94 | V-0 |
| CE marking | Yes |
| China RoHS | Compliant |
| Insert colour | Pebble grey (RAL 7032) |
| Insulating material group | IIIa |
| Modular slots | 2 |
| RoHS | Compliant |
| Series | IM |
| Mating cycles | ≥500 |
| Max. temperature | +125°C |
| Min. temperature | -40°C |
| Pollution degree | 3 |
| Insert material | Polycarbonate (PC) |
| Overvoltage category | III |
