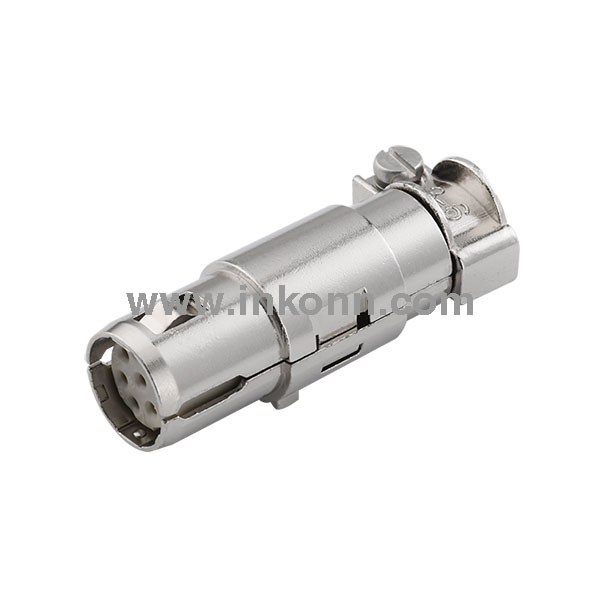

InKonn SARE® contact insert, Series IM, 8, female. Connection type: crimp termination. Rated current 5A, rated voltage 50V. Wire size 0.08-0.52mm². Contact resistance <10mΩ. Temperature range -40…+125°C. ≥500 mating cycles. CE compliant, RoHS certified. Compatible with all SARE® housings of the corresponding size.
Specifications
| Gender | Female |
| Number of contacts | 8 |
| Rated current IEC | 5A |
| Rated voltage IEC | 50V |
| Rated impulse voltage | 0.8kV |
| Strip length | Please refer to crimp contact data |
| Contact series | Csub |
| CE marking | Yes |
| China RoHS | Compliant |
| Contact resistance | <10mΩ |
| Insulation resistance | >1010Ω |
| Insulating material group | IIIa |
| Conductor cross-section | 0.08-0.52mm² |
| Crimp contact plating | Gold-plated |
| RoHS | Compliant |
| Series | IM |
| Mating cycles | ≥500 |
| Max. temperature | +125°C |
| Min. temperature | -40°C |
| Pollution degree | 3 |
| Crimp contact material | Copper alloy |
| Shielding material | Die-cast zinc, nickel-plated |
| Overvoltage category | III |
