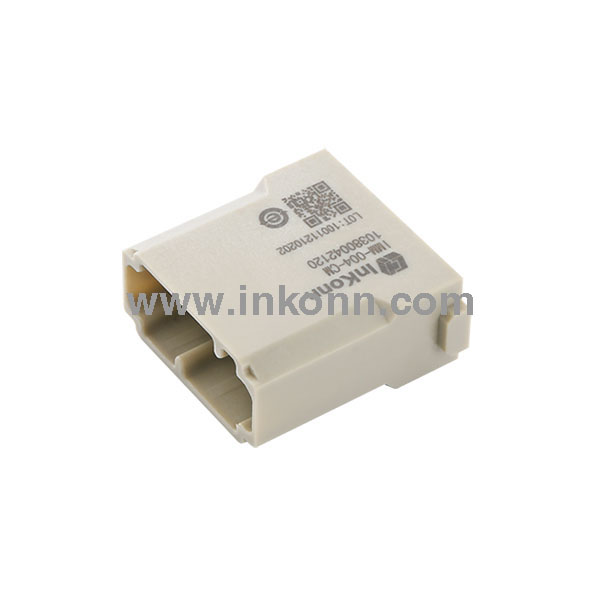

Inserts - IMM-004-CM - 10 38 004 2120 - InKonn
InKonn SARE® contact insert, Series IM, size M1, 4, male. Connection type: crimp termination. Modular insert with 1 slot. Insert material: polycarbonate (PC) (UL 94 V-0). Temperature range -40…+125°C. ≥500 mating cycles. CE compliant, RoHS certified. Compatible with all SARE® housings of the corresponding size.
Specifications
| Size | M1 |
| Flammability class UL 94 | V-0 |
| CE marking | Yes |
| China RoHS | Compliant |
| Insert colour | Pebble grey (RAL 7032) |
| Gender | Male |
| Insulating material group | IIIa |
| Number of contacts | 4 |
| Contact series | C-ax |
| Modular slots | 1 |
| RoHS | Compliant |
| Series | IM |
| Mating cycles | ≥500 |
| Max. temperature | +125°C |
| Min. temperature | -40°C |
| Pollution degree | 3 |
| Insert material | Polycarbonate (PC) |
| Overvoltage category | III |
