Contacts - CP-3-M - 10 38 000 7100 - InKonn

Name: Contacts - CP-3-M - 10 38 000 7100 - InKonn
Price: 7.94 EUR
Availability: InStock

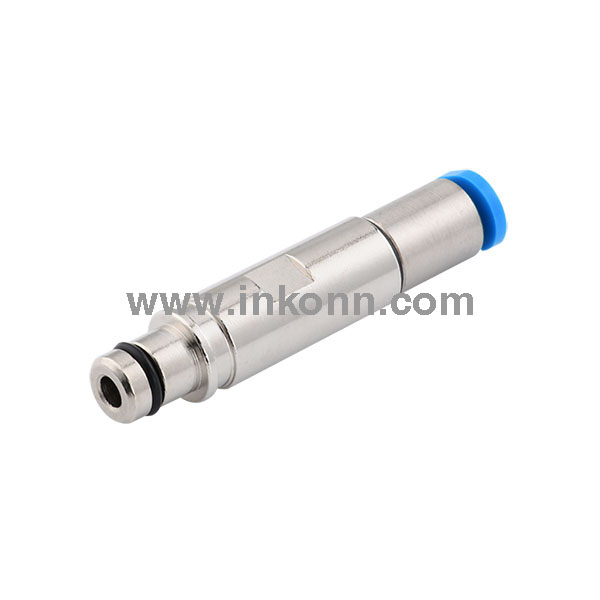

InKonn SARE® metal pneumatic contact, male. Design: machined. Option: non-shut-off. Outer tube diameter 3mm. Operating pressure <10 bar. Material: brass, seal HNBR. Temperature range -20 to +85°C. CE compliant, RoHS certified. For use in modular SARE® heavy-duty connectors.

InKonn

7.94 € 7.94 €

7.94 €

Gender
- Male
Operating pressure
- <10 bar
CE marking
- Yes
China RoHS
- Compliant
Shape
- Turned
Option
- Without locking
RoHS
- Compliant
Hose outer diameter
- 3mm
Series
- Pneumatic
Seal material
- HNBR
Contact material
- Brass

Add to cart

Add to wishlist

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Documents

2D Zeichnung 10 38 000 7100.pdf Datenblatt 10 38 000 7100.pdf

Specifications

Gender	Male
Operating pressure	<10 bar
CE marking	Yes
China RoHS	Compliant
Shape	Turned
Option	Without locking
RoHS	Compliant
Hose outer diameter	3mm
Series	Pneumatic
Seal material	HNBR
Contact material	Brass
