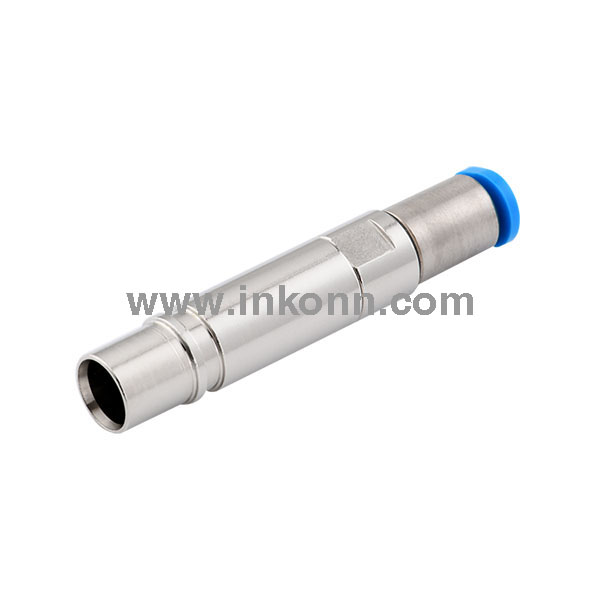

InKonn SARE® metal pneumatic contact, female. Design: machined. Option: shut-off type. Outer tube diameter 4mm. Operating pressure <10 bar. Material: brass, seal HNBR. Temperature range -20 to +85°C. CE compliant, RoHS certified. For use in modular SARE® heavy-duty connectors.
Specifications
| Gender | Female |
| Operating pressure | <10 bar |
| CE marking | Yes |
| China RoHS | Compliant |
| Shape | Turned |
| Option | With locking |
| RoHS | Compliant |
| Hose outer diameter | 4mm |
| Series | Pneumatic |
| Seal material | HNBR |
| Contact material | Brass |
