Housings - HB10-HSM-DL-M25 - 10 11 010 1622 - InKonn

Housings - HB10-HSM-DL-M25 - 10 11 010 1622 - InKonn

https://www.industrial-connector.eu/web/image/product.template/58007/image_1920?unique=927eaa2

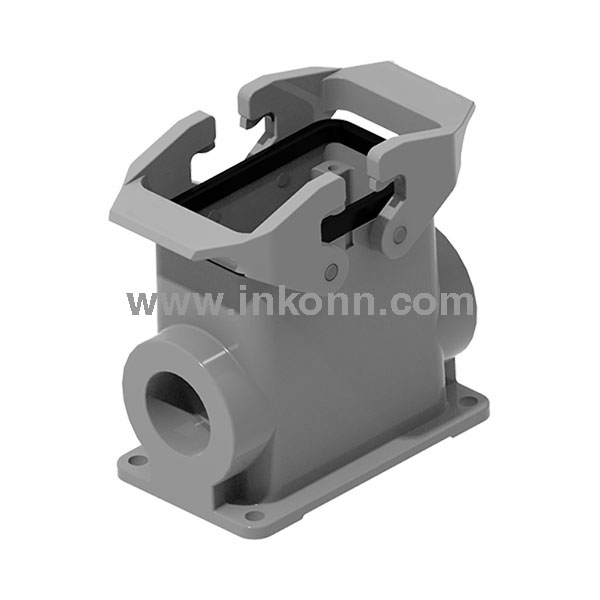

InKonn SARE® panel-mount housing, standard metal version, size B10. Housing height: high profile. Version: without cap. Protection rating IP65, IP67 / NEMA 4X, 12 – reliable protection against dust and water. Locking: cross lever. Housing material: aluminum die-cast, colour grey (RAL 7037), finish powder-coated. Temperature range -40…+125°C. CE compliant, RoHS certified. Compatible with all SARE® inserts of the corresponding size.

17.83 € 17.83 EUR 17.83 €

17.83 €

Not Available For Sale

  • IP protection class
  • Number of cable entries
  • Size
  • Locking lever type
  • CE marking
  • China RoHS
  • Lever colour
  • Housing colour
  • Housing height
  • Housing option
  • Housing series
  • Thread type/size
  • NEMA protection class
  • Housing surface finish
  • RoHS
  • Max. temperature
  • Min. temperature
  • Lever material
  • Seal material
  • Housing material

This combination does not exist.

InKonn
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Specifications

Chargers
IP protection class IP65, IP67
Others
Number of cable entries 1
Size B10
Locking lever type Transverse lever
CE marking Yes
China RoHS Compliant
Lever colour Dust grey (RAL 7037)
Housing colour Dust grey (RAL 7037)
Housing height High profile
Housing option Without cap
Housing series Standard
Thread type/size M25
NEMA protection class 4X, 12
Housing surface finish Powder-coated
RoHS Compliant
Max. temperature +125°C
Min. temperature -40°C
Lever material Polycarbonate + stainless steel
Seal material NBR
Housing material Die-cast aluminium
