Housings - HB16-HSE-CL/S-M25 - 10 11 016 1132 - InKonn

https://www.industrial-connector.eu/web/image/product.template/58134/image_1920?unique=cd74d34

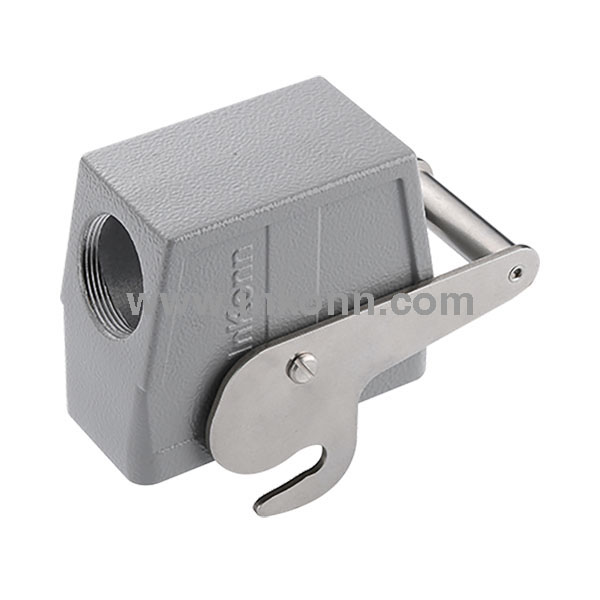

InKonn SARE® hood housing, standard metal version, size B16. With angled cable entry (M25). Housing height: high profile. Protection rating IP65, IP67 / NEMA 4X, 12 – reliable protection against dust and water. Locking: central lever. Housing material: aluminum die-cast, colour grey (RAL 7037), finish powder-coated. Temperature range -40…+125°C. CE compliant, RoHS certified. Compatible with all SARE® inserts of the corresponding size.

33.35 € 33.35 EUR 33.35 €

33.35 €

Not Available For Sale

  • IP protection class
  • Number of cable entries
  • Size
  • Locking lever type
  • CE marking
  • China RoHS
  • Housing colour
  • Housing height
  • Housing series
  • Thread type/size
  • Cable entry
  • NEMA protection class
  • Housing surface finish
  • RoHS
  • Max. temperature
  • Min. temperature
  • Lever material
  • Housing material

This combination does not exist.

InKonn

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Chargers
IP protection class IP65, IP67
Others
Number of cable entries 1
Size B16
Locking lever type Central lever
CE marking Yes
China RoHS Compliant
Housing colour Dust grey (RAL 7037)
Housing height High profile
Housing series Standard
Thread type/size M25
Cable entry Side cable entry
NEMA protection class 4X, 12
Housing surface finish Powder-coated
RoHS Compliant
Max. temperature +125°C
Min. temperature -40°C
Lever material Stainless steel
Housing material Die-cast aluminium
