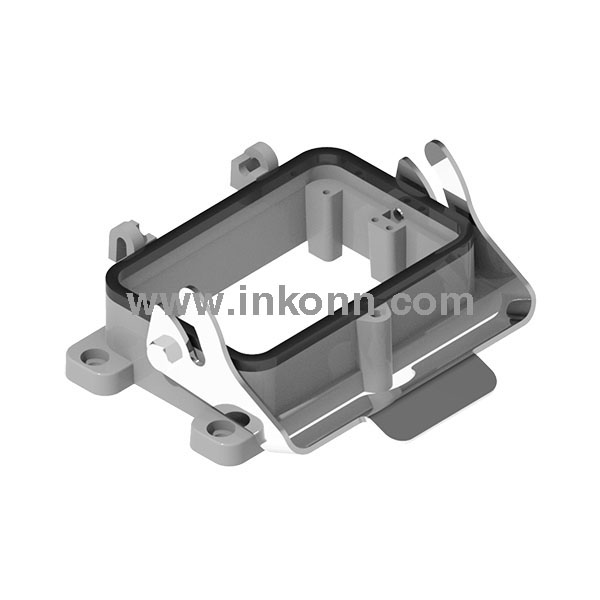

Housings - HB48-BM-SL/S - 10 11 048 0510 - InKonn

https://www.industrial-connector.eu/web/image/product.template/58214/image_1920?unique=fc90895
InKonn SARE® surface-mount housing, standard metal version, size B48. Version: without cap. Protection rating IP65, IP67 / NEMA 4X, 12 – reliable protection against dust and water. Locking: single lever. Housing material: aluminum die-cast, colour grey (RAL 7037), finish powder-coated. Temperature range -40…+125°C. CE compliant, RoHS certified. Compatible with all SARE® inserts of the corresponding size.

51.87 € 51.87 EUR 51.87 €

51.87 €

Not Available For Sale

  • IP protection class
  • Size
  • Locking lever type
  • CE marking
  • China RoHS
  • Housing colour
  • Housing option
  • Housing series
  • NEMA protection class
  • Housing surface finish
  • RoHS
  • Max. temperature
  • Min. temperature
  • Lever material
  • Seal material
  • Housing material

This combination does not exist.

InKonn

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Chargers
IP protection class IP65, IP67
Others
Size B48
Locking lever type Longitudinal lever
CE marking Yes
China RoHS Compliant
Housing colour Dust grey (RAL 7037)
Housing option Without cap
Housing series Standard
NEMA protection class 4X, 12
Housing surface finish Powder-coated
RoHS Compliant
Max. temperature +125°C
Min. temperature -40°C
Lever material Stainless steel
Seal material NBR
Housing material Die-cast aluminium
