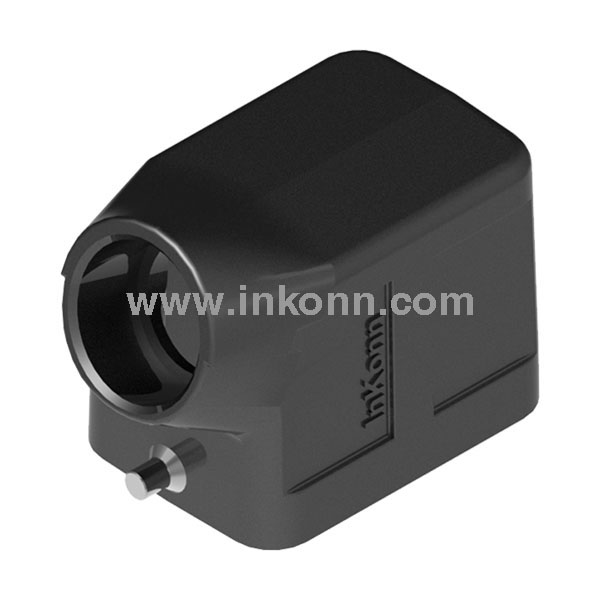

Housings - HMB06-SE-DP-M20 - 10 12 006 0101 - InKonn

https://www.industrial-connector.eu/web/image/product.template/58222/image_1920?unique=710a9ac
InKonn SARE® hood housing, outdoor version, size B06. With angled cable entry (M20). Housing height: low profile. Protection rating IP65, IP67 / NEMA 4X, 12 – reliable protection against dust and water. Locking: single lever. Housing material: aluminum die-cast, colour black (RAL 9005), finish powder-coated. Temperature range -40…+125°C. CE compliant, RoHS certified. Compatible with all SARE® inserts of the corresponding size.

15.89 € 15.89 EUR 15.89 €

15.89 €

Not Available For Sale

  • IP protection class
  • Number of cable entries
  • Size
  • Locking lever type
  • CE marking
  • China RoHS
  • Housing colour
  • Housing height
  • Housing series
  • Thread type/size
  • Cable entry
  • NEMA protection class
  • Housing surface finish
  • RoHS
  • Max. temperature
  • Min. temperature
  • Lever material
  • Housing material

This combination does not exist.

InKonn

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Chargers
IP protection class IP65, IP67
Others
Number of cable entries 1
Size B06
Locking lever type Longitudinal lever
CE marking Yes
China RoHS Compliant
Housing colour Jet black (RAL 9005)
Housing height Low profile
Housing series M (Outdoor)
Thread type/size M20
Cable entry Side cable entry
NEMA protection class 4X, 12
Housing surface finish Powder-coated
RoHS Compliant
Max. temperature +125°C
Min. temperature -40°C
Lever material Stainless steel
Housing material Die-cast aluminium
