Housings - HMB10-BM-DL/S - 10 12 010 0520 - InKonn

https://www.industrial-connector.eu/web/image/product.template/58234/image_1920?unique=d757088

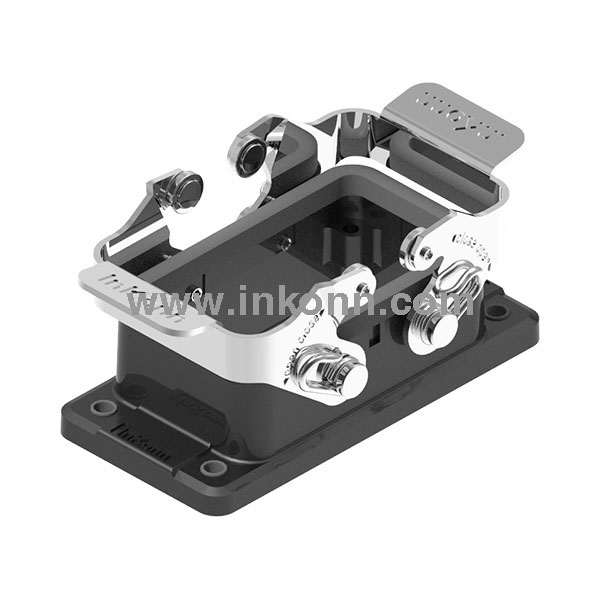

InKonn SARE® surface-mount housing, outdoor version, size B10. Version: without cap. Protection rating IP65, IP67 / NEMA 4X, 12 – reliable protection against dust and water. Locking: cross lever. Housing material: aluminum die-cast, colour black (RAL 9005), finish powder-coated. Temperature range -40…+125°C. CE compliant, RoHS certified. Compatible with all SARE® inserts of the corresponding size.

55.37 € 55.37 EUR 55.37 €

55.37 €

Not Available For Sale

  • IP protection class
  • Size
  • Locking lever type
  • CE marking
  • China RoHS
  • Housing colour
  • Housing option
  • Housing series
  • NEMA protection class
  • Housing surface finish
  • RoHS
  • Max. temperature
  • Min. temperature
  • Lever material
  • Seal material
  • Housing material

This combination does not exist.

InKonn

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Chargers
IP protection class IP65, IP67
Others
Size B10
Locking lever type Transverse lever
CE marking Yes
China RoHS Compliant
Housing colour Jet black (RAL 9005)
Housing option Without cap
Housing series M (Outdoor)
NEMA protection class 4X, 12
Housing surface finish Powder-coated
RoHS Compliant
Max. temperature +125°C
Min. temperature -40°C
Lever material Stainless steel
Seal material FPM
Housing material Die-cast aluminium
