Housings - HEMCB06-SE-DP-M20 - 10 14 006 0101 - InKonn

Name: Housings - HEMCB06-SE-DP-M20 - 10 14 006 0101 - InKonn
Price: 9.58 EUR
Availability: InStock

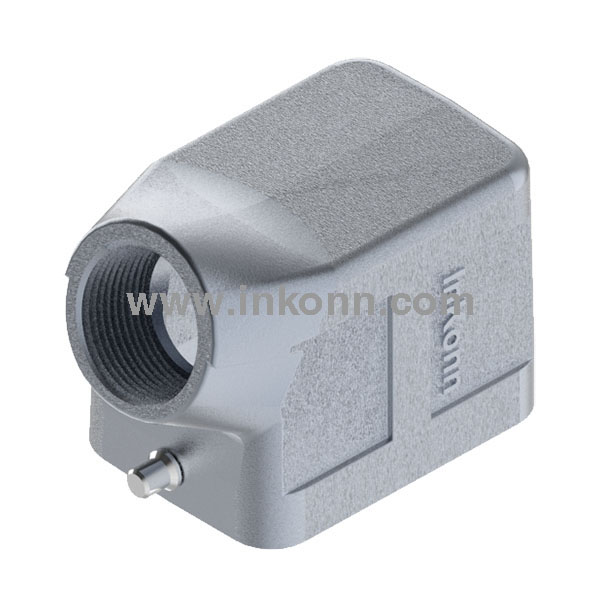

InKonn SARE® hood housing, EMC-shielded version, size B06. With angled cable entry (M20). Housing height: low profile. Protection rating IP65, IP67 / NEMA 4X, 12 – reliable protection against dust and water. Locking: single lever. Housing material: aluminum die-cast, finish uncoated. Temperature range -40…+125°C. CE compliant, RoHS certified. Compatible with all SARE® inserts of the corresponding size.

InKonn

9.58 € 9.58 €

9.58 €

Size
- B06
IP protection class
- IP65, IP67
Housing series
- EMC
Number of cable entries
- 1
Cable entry
- Side cable entry
Locking lever type
- Longitudinal lever
CE marking
- Yes
China RoHS
- Compliant
Housing height
- Low profile
Thread type/size
- M20
NEMA protection class
- 4X, 12
Housing surface finish
- Uncoated
RoHS
- Compliant
Max. temperature
- +125°C
Min. temperature
- -40°C
Lever material
- Stainless steel
Housing material
- Die-cast aluminium

Add to cart

Add to wishlist

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Documents

2D Zeichnung 10 14 006 0101.pdf Datenblatt 10 14 006 0101.pdf

Specifications

Chargers
IP protection class	IP65, IP67

Others
Size	B06
Housing series	EMC
Number of cable entries	1
Cable entry	Side cable entry
Locking lever type	Longitudinal lever
CE marking	Yes
China RoHS	Compliant
Housing height	Low profile
Thread type/size	M20
NEMA protection class	4X, 12
Housing surface finish	Uncoated
RoHS	Compliant
Max. temperature	+125°C
Min. temperature	-40°C
Lever material	Stainless steel
Housing material	Die-cast aluminium
