Housings - HEMCB10-HSM-DL-2M32 - 10 14 010 1623 - InKonn

https://www.industrial-connector.eu/web/image/product.template/58292/image_1920?unique=975a711

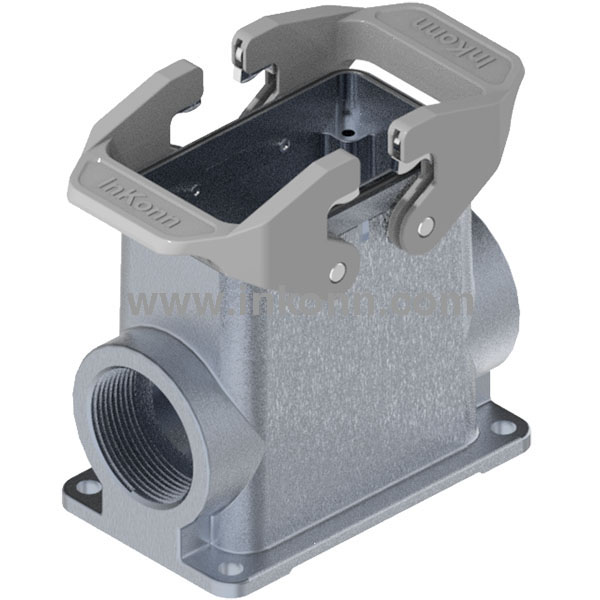

InKonn SARE® panel-mount housing, EMC-shielded version, size B10. Housing height: high profile. Version: without cap. Number of cable entries: 2. Protection rating IP65, IP67 / NEMA 4X, 12 – reliable protection against dust and water. Locking: cross lever. Housing material: aluminum die-cast, finish uncoated. Temperature range -40…+125°C. CE compliant, RoHS certified. Compatible with all SARE® inserts of the corresponding size.

43.78 € 43.78 EUR 43.78 €

43.78 €

Not Available For Sale

  • IP protection class
  • Number of cable entries
  • Size
  • Locking lever type
  • CE marking
  • China RoHS
  • Lever colour
  • Housing height
  • Housing option
  • Housing series
  • Thread type/size
  • NEMA protection class
  • Housing surface finish
  • RoHS
  • Max. temperature
  • Min. temperature
  • Lever material
  • Seal material
  • Housing material

This combination does not exist.

InKonn

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Chargers
IP protection class IP65, IP67
Others
Number of cable entries 2
Size B10
Locking lever type Transverse lever
CE marking Yes
China RoHS Compliant
Lever colour Dust grey (RAL 7037)
Housing height High profile
Housing option Without cap
Housing series EMC
Thread type/size M32
NEMA protection class 4X, 12
Housing surface finish Uncoated
RoHS Compliant
Max. temperature +125°C
Min. temperature -40°C
Lever material Polycarbonate + stainless steel
Seal material NBR
Housing material Die-cast aluminium
