Housings - HEMCB10-SE-QP-M20 - 10 14 010 0141 - InKonn

Housings - HEMCB10-SE-QP-M20 - 10 14 010 0141 - InKonn

https://www.industrial-connector.eu/web/image/product.template/58294/image_1920?unique=50fd6f7

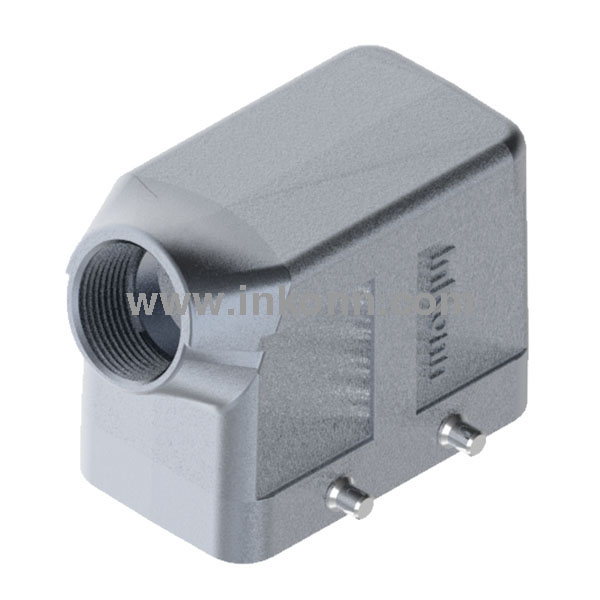

InKonn SARE® hood housing, EMC-shielded version, size B10. With angled cable entry (M20). Housing height: low profile. Protection rating IP65, IP67 / NEMA 4X, 12 – reliable protection against dust and water. Locking: cross lever. Housing material: aluminum die-cast, finish uncoated. Temperature range -40…+125°C. CE compliant, RoHS certified. Compatible with all SARE® inserts of the corresponding size.

12.08 € 12.08 EUR 12.08 €

12.08 €

Not Available For Sale

  • IP protection class
  • Number of cable entries
  • Size
  • Locking lever type
  • CE marking
  • China RoHS
  • Housing height
  • Housing series
  • Thread type/size
  • Cable entry
  • NEMA protection class
  • Housing surface finish
  • RoHS
  • Max. temperature
  • Min. temperature
  • Lever material
  • Housing material

This combination does not exist.

InKonn
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Specifications

Chargers
IP protection class IP65, IP67
Others
Number of cable entries 1
Size B10
Locking lever type Transverse lever
CE marking Yes
China RoHS Compliant
Housing height Low profile
Housing series EMC
Thread type/size M20
Cable entry Side cable entry
NEMA protection class 4X, 12
Housing surface finish Uncoated
RoHS Compliant
Max. temperature +125°C
Min. temperature -40°C
Lever material Stainless steel
Housing material Die-cast aluminium
