Housings - HEMCB16-BM-DL - 10 14 016 0520 - InKonn

Housings - HEMCB16-BM-DL - 10 14 016 0520 - InKonn

https://www.industrial-connector.eu/web/image/product.template/58304/image_1920?unique=2673f8c

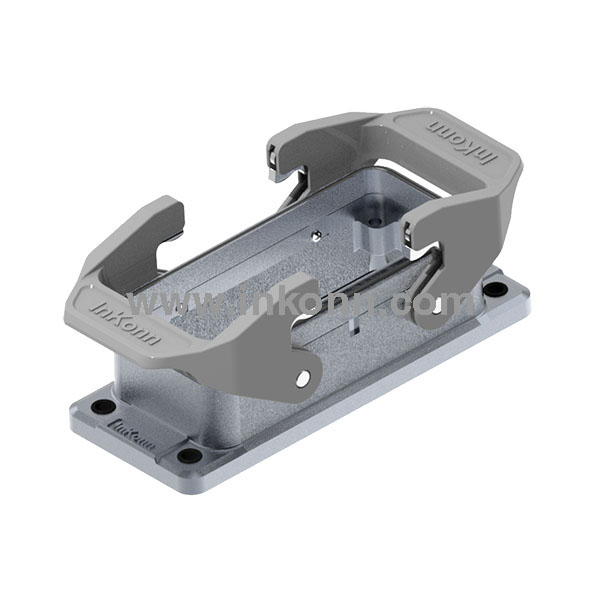

InKonn SARE® surface-mount housing, EMC-shielded version, size B16. Version: without cap. Protection rating IP65, IP67 / NEMA 4X, 12 – reliable protection against dust and water. Locking: cross lever. Housing material: aluminum die-cast, finish uncoated. Temperature range -40…+125°C. CE compliant, RoHS certified. Compatible with all SARE® inserts of the corresponding size.

20.98 € 20.98 EUR 20.98 €

20.98 €

Not Available For Sale

  • IP protection class
  • Size
  • Locking lever type
  • CE marking
  • China RoHS
  • Lever colour
  • Housing option
  • Housing series
  • NEMA protection class
  • Housing surface finish
  • RoHS
  • Max. temperature
  • Min. temperature
  • Lever material
  • Seal material
  • Housing material

This combination does not exist.

InKonn
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Specifications

Chargers
IP protection class IP65, IP67
Others
Size B16
Locking lever type Transverse lever
CE marking Yes
China RoHS Compliant
Lever colour Dust grey (RAL 7037)
Housing option Without cap
Housing series EMC
NEMA protection class 4X, 12
Housing surface finish Uncoated
RoHS Compliant
Max. temperature +125°C
Min. temperature -40°C
Lever material Polycarbonate + stainless steel
Seal material NBR
Housing material Die-cast aluminium
