Contacts - CDG-0.37-M - 10 31 000 7110 - InKonn

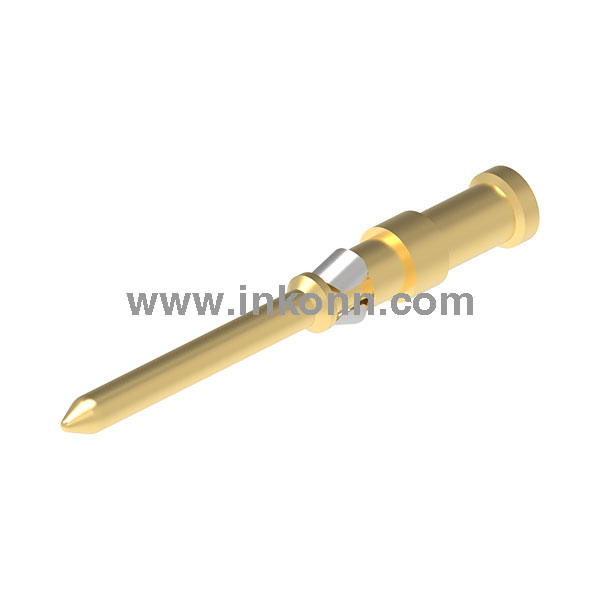

InKonn SARE® crimp contact, male. Design: machined. Rated current 10A. Wire size 0.14-0.37mm². Pin diameter 1.6mm. Contact resistance <3mΩ. Material: copper alloy, finish gold-plated. CE compliant, RoHS certified. For use in modular SARE® heavy-duty connectors.
Specifications
| Strip length | 8mm |
| Rated current | 10A |
| CE marking | Yes |
| China RoHS | Compliant |
| Contact resistance | <3mΩ |
| Shape | Turned |
| Gender | Male |
| Conductor cross-section | 0.14-0.37mm² |
| Conductor cross-section AW | AWG 26-22 |
| Contact plating | Gold-plated |
| Pin diameter | 1.6mm |
| RoHS | Compliant |
| Series | CD |
| Contact material | Copper alloy |
