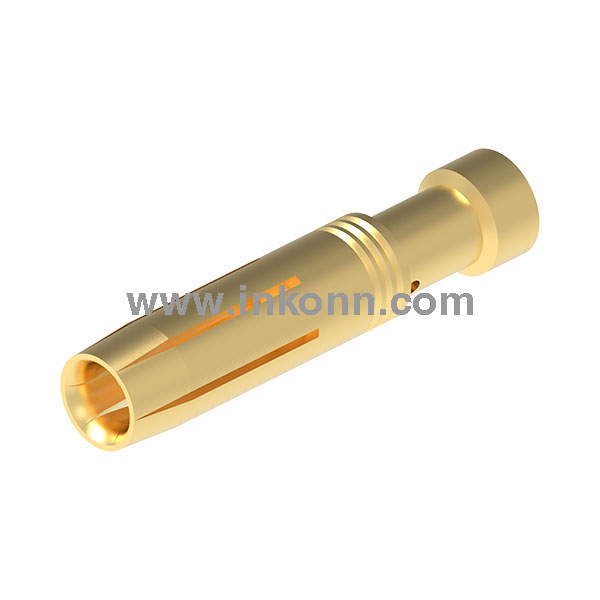

InKonn SARE® crimp contact, female. Design: machined. Rated current 16A. Wire size 0.14-0.37mm². Pin diameter 2.5mm. Material: copper alloy, finish gold-plated. CE compliant, RoHS certified. For use in modular SARE® heavy-duty connectors.
Specifications
| Strip length | 7.5mm |
| Rated current | 16A |
| CE marking | Yes |
| China RoHS | Compliant |
| Shape | Turned |
| Gender | Female |
| Conductor cross-section | 0.14-0.37mm² |
| Conductor cross-section AW | AWG 26-22 |
| Contact plating | Gold-plated |
| Pin diameter | 2.5mm |
| RoHS | Compliant |
| Series | CE |
| Contact material | Copper alloy |
