Contacts - CEG-0.75-F - 10 32 000 7212 - InKonn

Contacts - CEG-0.75-F - 10 32 000 7212 - InKonn

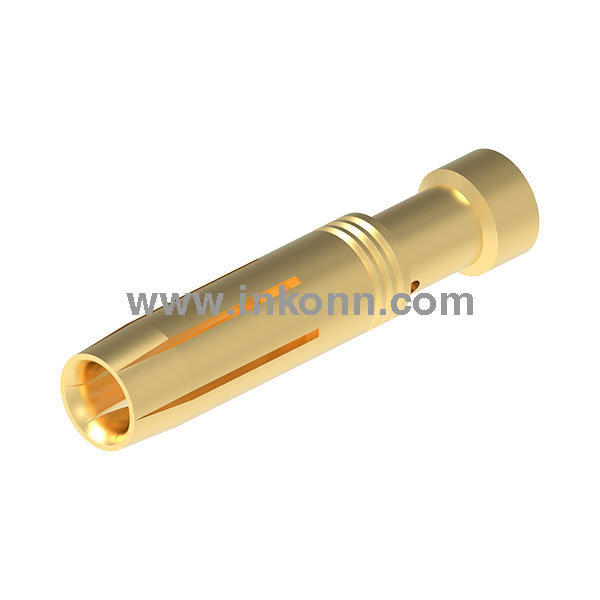

InKonn SARE® crimp contact, female. Design: machined. Rated current 16A. Wire size 0.75mm². Pin diameter 2.5mm. Material: copper alloy, finish gold-plated. CE compliant, RoHS certified. For use in modular SARE® heavy-duty connectors.
InKonn
2.19 € 2.19 €
2.19 €

  • Gender
  • Strip length
  • Rated current
  • China RoHS
  • Shape
  • Conductor cross-section
  • Conductor cross-section AW
  • Contact plating
  • Pin diameter
  • RoHS
  • Series
  • Contact material
Add to cart
Add to wishlist
Terms and Conditions
Contact Us
Documents
2D Zeichnung 10 32 000 7212.pdf Datenblatt 10 32 000 7212.pdf

Specifications

Gender Female
Strip length 7.5mm
Rated current 16A
China RoHS Compliant
Shape Turned
Conductor cross-section 0.75mm²
Conductor cross-section AW AWG 18
Contact plating Gold-plated
Pin diameter 2.5mm
RoHS Compliant
Series CE
Contact material Copper alloy
Physical Properties
Weight 1.3 g
