Contacts - CCS-4.0-F - 10 34 000 7202 - InKonn

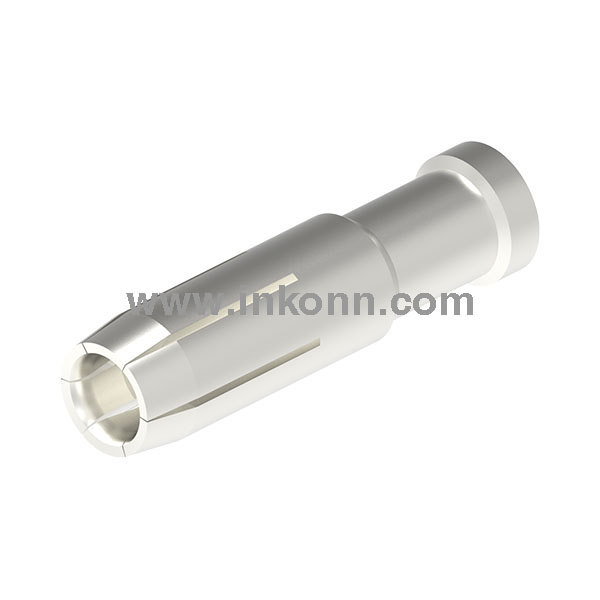

InKonn SARE® crimp contact, female. Design: machined. Rated current 40A. Wire size 4mm². Pin diameter 4mm. Contact resistance <1mΩ. Material: copper alloy, finish silver-plated. ≥500 mating cycles. CE compliant, RoHS certified. For use in modular SARE® heavy-duty connectors.
Specifications
| Strip length | 9.5mm |
| Rated current | 40A |
| CE marking | Yes |
| China RoHS | Compliant |
| Contact resistance | <1mΩ |
| Shape | Turned |
| Gender | Female |
| Conductor cross-section | 4mm² |
| Conductor cross-section AW | AWG 12 |
| Contact plating | Silver-plated |
| Pin diameter | 4mm |
| RoHS | Compliant |
| Series | CC |
| Mating cycles | ≥500 |
| Contact material | Copper alloy |
