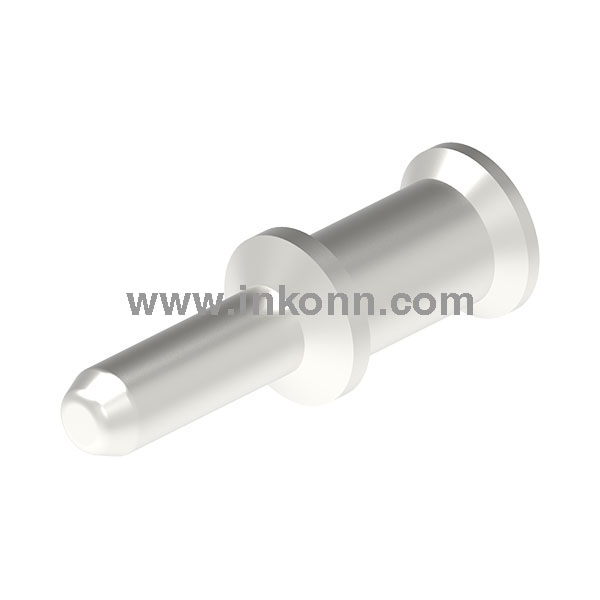

Contacts - C70S-10-M - 10 39 000 7100 - InKonn
InKonn SARE® crimp contact, male. Design: machined. Rated current 70A. Wire size 10mm². Pin diameter 6mm. Contact resistance <0.5mΩ. Material: copper alloy, finish silver-plated. ≥500 mating cycles. CE compliant, RoHS certified. For use in modular SARE® heavy-duty connectors.
Specifications
| Strip length | 15.5mm |
| Rated current | 70A |
| CE marking | Yes |
| China RoHS | Compliant |
| Contact resistance | <0.5mΩ |
| Shape | Turned |
| Gender | Male |
| Conductor cross-section | 10mm² |
| Conductor cross-section AW | AWG 8 |
| Contact plating | Silver-plated |
| Pin diameter | 6mm |
| RoHS | Compliant |
| Series | C70 |
| Mating cycles | ≥500 |
| Contact material | Copper alloy |
