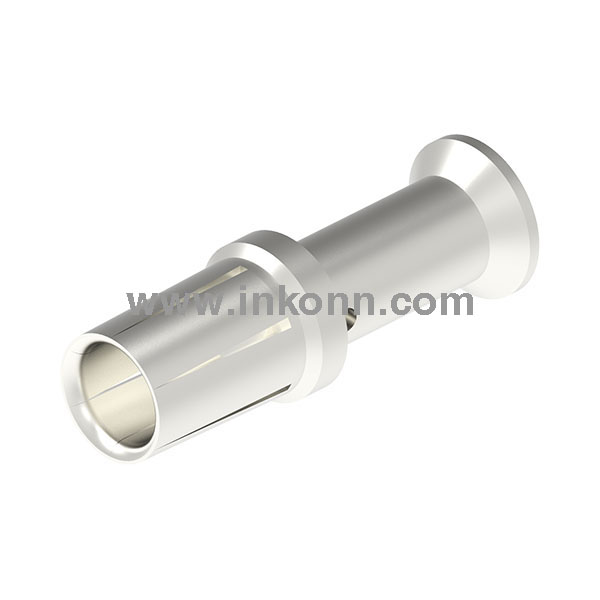

Contacts - C100S-10-F - 10 39 000 7210 - InKonn

Name: Contacts - C100S-10-F - 10 39 000 7210 - InKonn
Price: 10.27 EUR
Availability: InStock

InKonn SARE® crimp contact, female. Design: machined. Rated current 100A. Wire size 10mm². Pin diameter 8mm. Contact resistance <0.3mΩ. Material: copper alloy, finish silver-plated. ≥500 mating cycles. CE compliant, RoHS certified. For use in modular SARE® heavy-duty connectors.

InKonn

10.27 € 10.27 €

10.27 €

Gender
- Female
Strip length
- 19mm
Rated current
- 100A
CE marking
- Yes
China RoHS
- Compliant
Contact resistance
- <0.3mΩ
Shape
- Turned
Conductor cross-section
- 10mm²
Conductor cross-section AW
- AWG 8
Contact plating
- Silver-plated
Pin diameter
- 8mm
RoHS
- Compliant
Series
- C100
Mating cycles
- ≥500
Contact material
- Copper alloy

Add to cart

Add to wishlist

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Documents

2D Zeichnung 10 39 000 7210.pdf Datenblatt 10 39 000 7210.pdf

Specifications

Gender	Female
Strip length	19mm
Rated current	100A
CE marking	Yes
China RoHS	Compliant
Contact resistance	<0.3mΩ
Shape	Turned
Conductor cross-section	10mm²
Conductor cross-section AW	AWG 8
Contact plating	Silver-plated
Pin diameter	8mm
RoHS	Compliant
Series	C100
Mating cycles	≥500
Contact material	Copper alloy
