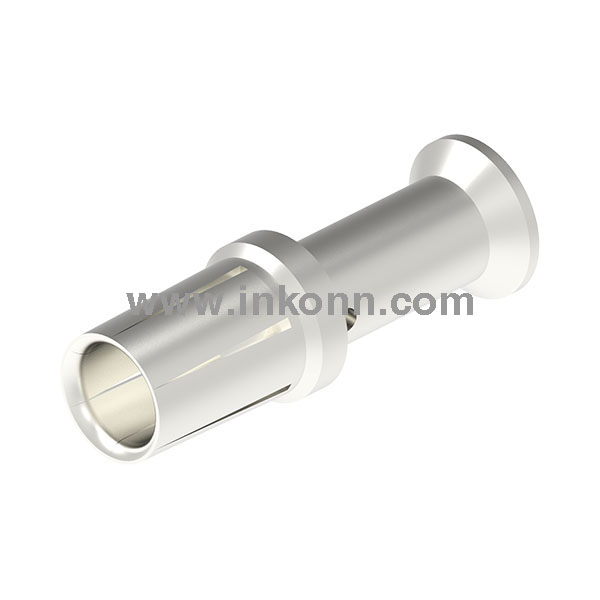

Contacts - C100S-25-F - 10 39 000 7212 - InKonn
InKonn SARE® crimp contact, female. Design: machined. Rated current 100A. Wire size 25mm². Pin diameter 8mm. Contact resistance <0.3mΩ. Material: copper alloy, finish silver-plated. ≥500 mating cycles. CE compliant, RoHS certified. For use in modular SARE® heavy-duty connectors.
Specifications
| Strip length | 19mm |
| Rated current | 100A |
| CE marking | Yes |
| China RoHS | Compliant |
| Contact resistance | <0.3mΩ |
| Shape | Turned |
| Gender | Female |
| Conductor cross-section | 25mm² |
| Conductor cross-section AW | AWG 4 |
| Contact plating | Silver-plated |
| Pin diameter | 8mm |
| RoHS | Compliant |
| Series | C100 |
| Mating cycles | ≥500 |
| Contact material | Copper alloy |
