Contacts - C200S-70-F - 10 39 000 7223 - InKonn

Name: Contacts - C200S-70-F - 10 39 000 7223 - InKonn
Price: 12.58 EUR
Availability: InStock

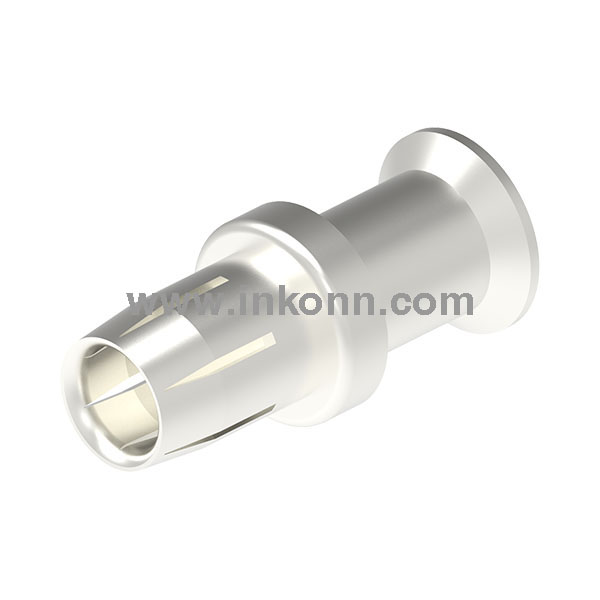

InKonn SARE® crimp contact, female. Design: machined. Rated current 200A. Wire size 70mm². Pin diameter 9.5mm. Contact resistance <0.3mΩ. Material: copper alloy, finish silver-plated. ≥500 mating cycles. CE compliant, RoHS certified. For use in modular SARE® heavy-duty connectors.

InKonn

12.58 € 12.58 €

12.58 €

Gender
- Female
Strip length
- 22.5mm
Rated current
- 200A
CE marking
- Yes
China RoHS
- Compliant
Contact resistance
- <0.3mΩ
Shape
- Turned
Conductor cross-section
- 70mm²
Conductor cross-section AW
- AWG 2/0
Contact plating
- Silver-plated
Pin diameter
- 9.5mm
RoHS
- Compliant
Series
- C200
Mating cycles
- ≥500
Contact material
- Copper alloy

Add to cart

Add to wishlist

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Documents

2D Zeichnung 10 39 000 7223.pdf Datenblatt 10 39 000 7223.pdf

Specifications

Gender	Female
Strip length	22.5mm
Rated current	200A
CE marking	Yes
China RoHS	Compliant
Contact resistance	<0.3mΩ
Shape	Turned
Conductor cross-section	70mm²
Conductor cross-section AW	AWG 2/0
Contact plating	Silver-plated
Pin diameter	9.5mm
RoHS	Compliant
Series	C200
Mating cycles	≥500
Contact material	Copper alloy
