Inserts - IMC-002.1-F - 10 38 002 1210 - InKonn

Inserts - IMC-002.1-F - 10 38 002 1210 - InKonn

https://www.industrial-connector.eu/web/image/product.template/57894/image_1920?unique=4b018e3

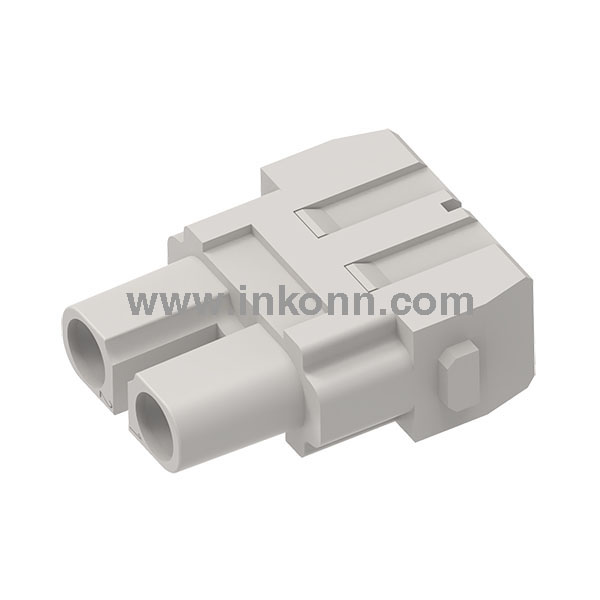

InKonn SARE® contact insert, Series IM, size M1, 2, female. Connection type: axial screw termination. Modular insert with 1 slot. Rated current 40A, rated voltage 1000V. Wire size 2.5-8mm². Contact resistance <1mΩ. Insert material: polycarbonate (PC) (UL 94 V-0). Temperature range -40…+125°C. ≥500 mating cycles. CE compliant, RoHS certified. Compatible with all SARE® housings of the corresponding size.

10.66 € 10.66 EUR 10.66 €

10.66 €

Not Available For Sale

  • Strip length
  • Tightening torque
  • Size
  • Rated voltage IEC
  • Rated impulse voltage
  • Rated current IEC
  • Flammability class UL 94
  • CE marking
  • China RoHS
  • Contact resistance
  • Insert colour
  • Gender
  • Insulation resistance
  • Insulating material group
  • Number of contacts
  • Conductor cross-section
  • Modular slots
  • Crimp contact plating
  • RoHS
  • Series
  • Mating cycles
  • Max. temperature
  • Min. temperature
  • Pollution degree
  • Crimp contact material
  • Insert material
  • Overvoltage category

This combination does not exist.

InKonn
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Specifications

Strip length Depending on wire size
Tightening torque Depending on wire size
Size M1
Rated voltage IEC 1000V
Rated impulse voltage 8kV
Rated current IEC 40A
Flammability class UL 94 V-0
CE marking Yes
China RoHS Compliant
Contact resistance <1mΩ
Insert colour Pebble grey (RAL 7032)
Gender Female
Insulation resistance >1010Ω
Insulating material group IIIa
Number of contacts 2
Conductor cross-section 2.5-8mm²
Modular slots 1
Crimp contact plating Silver-plated
RoHS Compliant
Series IM
Mating cycles ≥500
Max. temperature +125°C
Min. temperature -40°C
Pollution degree 3
Crimp contact material Copper alloy
Insert material Polycarbonate (PC)
Overvoltage category III
